Dynamics 365

We might have come across a requirement where we need to dynamically show users custom lookup views. We all know how we can set up views in Dynamics CRM by creating new views for an entity and updating the lookup properties to show required views.

Dynamics CRM provides us with the JS method ‘addCustomView’ which will be used for approach. This method takes the following arguments.

View ID (Guid)
Entity Name (String)
View Display Name (String)
Fetch XML (String)
Layout XML (String)
Boolean (to specify if this view is a default view or not)

Below is the custom JS script which can be modified as per our requirements. In my case, I needed to have a custom view for users lookup and I have run this script on form onload.

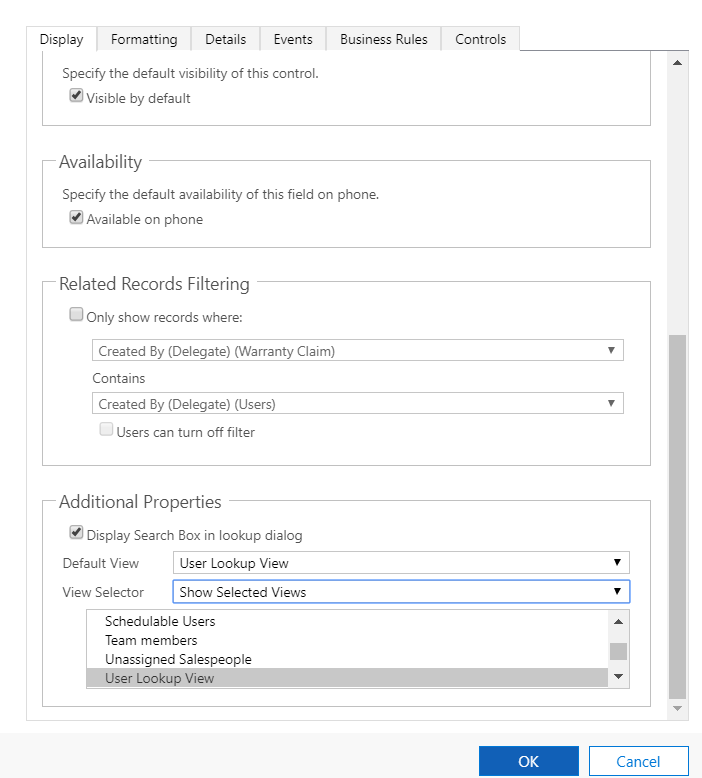

Note: For this to work, we need to enable view selector in CRM Form. See below.

Code:

function setCustomUsersView() {
    var functionName = "MyCustomUsersView";

    try {
        //Generate a new Guid
        var viewId = '{00000000 - 0000 - 0000 - 0000 - 000000000001}';
        var guid = (Random4() + Random4() + "-" + Random4() + "-4" + Random4().substr(0, 3) + "-" + Random4() + "-" + Random4() + Random4() + Random4()).toLowerCase();
        viewId = guid;

        //If we want to update the existing default view to have the same layout as our custom view use the below line of code
        //viewId = Xrm.Page.getControl("new_user").getDefaultView();

        //provide entity name
        var entityName = "systemuser";

        // add the view display name
        var viewDisplayName = "User Custom Lookup View";

        // Fetch XML to get user records.
        var fetchXml = "<fetch version='1.0' output-format='xml-platform' mapping='logical' distinct='false'>"+
                               "<entity name='systemuser'>"+
                                    "<attribute name='fullname'/>"+
                                    "<attribute name='businessunitid'/>"+
                                    "<attribute name='title'/>"+
                                    "<attribute name='address1_telephone1'/>"+
                                    "<attribute name='positionid'/>"+
                                    "<attribute name='systemuserid'/>"+
                                    "<order attribute='fullname' descending='false'/>"+
                                "</entity>"+
                        "</fetch>";

        //Grid Layout for fetch XML records
        var layoutXml = "<grid name='resultset' object='8' jump='fullname' select='1' icon='1' preview='1'>"+
                                 "<row name='result' id='systemuserid'>"+
                                        "<cell name='fullname' width='300' />"+
                                        "<cell name='businessunitid' width='150' />"+
                                        "<cell name='title' width='100' />"+
                                        "<cell name='positionid' width='100' />"+
                                        "<cell name='address1_telephone1' width='100' />"+
                                  "</row>"+
                         "</grid>";

        // Adding custom view to lookup
        Xrm.Page.getControl("new_user").addCustomView(viewId, entityName, viewDisplayName, fetchXml, layoutXml, false);
    } catch (e) {
        console.log(e);
    }
}

//Function to generate random characters for Guid
function Random4() {
    return (((1+Math.random())*0x10000)|0).toString(16).substring(1);
}

How to generate Fetch XML:
